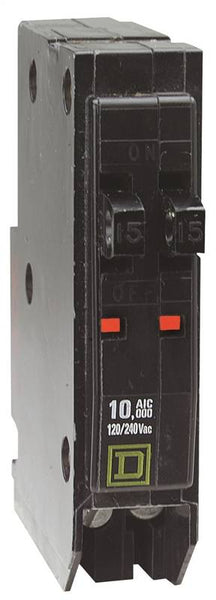

The industry leader in circuit protection is easily recognized by the industry's only trip indicator. The red Visi-Trip™ Indicator makes it easy to spot a tripped circuit breaker. Compact 3/4 in wide format for one-pole circuit breakers helps minimize panel space and footprint. The Square D™ exclusive Qwik-Open™ protection is standard on all 15 A and 20 A circuit breakers trip reaction within 1/60th of a second. No other circuit breaker trips faster.
Features
- Shielded copper bus bar
- Available in single and three phase
- Ground bar is included with all main lugs load centers with three mounting locations
- Convertible mains let you meet changing job-site requirements
- Tangential main service knockouts
- Enclosure rotates for top or bottom feed to reduce service cable waste
- Qwik-Open circuit breaker protection
- Exclusive Visi-Trip red indicator
- Quick make - quick break mechanism
- Plug-on design, easy to install
Specifications
Actuator Type : Magnetic Thermal
Color : Black
Current Rating : 15 A
Dimensions : 0.75 in W x 2.91 in D x 3.22 in H
Interrupt Rating : 10 kA
Mounting Type : Plug
Number of Phases : 1
Number of Poles : 1
Number Of Spaces : 1
Operating Frequency : 50/60 Hz
Operating Temperature : 104 deg F
Type : Mini Tandem
Voltage Rating : 120/240 V
