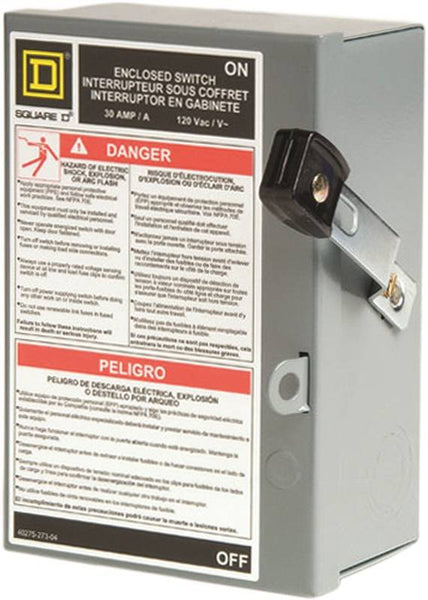

Single phase, 1-pole, 2-wire, solid neutral, 120/240 VAC. Rated 2 hp at 120 VAC, with metallic enclosure. Typical loads include workshop or hobby room, water heater, furnace, garage or well pump disconnect. 10,000 AIC (short circuit rating) with plug fuses. Padlock attachment for lock off. UL listed, meets NEMA standard KS1. 5 in x 7.63 in x 4 in.
Â
Features
- The light-duty safety switch has visible blades and a ground lug as standard features
- Available with plug or cartridge fuse holders
- Grounding kit standard
Specifications
Contact Configuration : Â SPST
Current Rating : Â 30Â A
Height : Â 8.0Â in
Mounting Type : Â Surface
Nema Rating : Â NEMA 1
Number of Poles : Â 1
Number Of Wires : Â 2
Short Circuit Rating : Â 10Â kA
Terminal Type : Â Lug
Type : Â Fusible
Voltage Rating : Â 120Â V
Width : Â 5Â in
