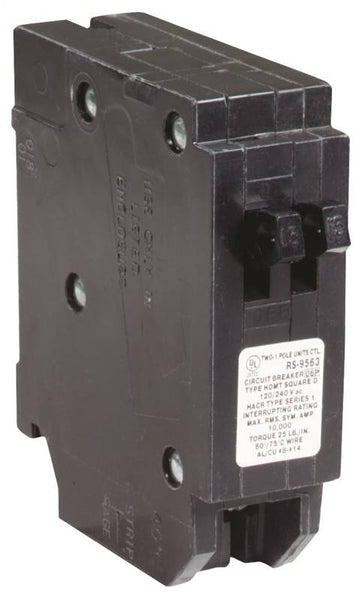

Engineered for value, Homeline™ circuit breakers are designed for fast installation, reliability and great circuit protection. With industry leading innovations and exclusive features, Square D Homeline circuit breakers are the smart, safe, reliable choice.
Features
- HOM one-pole standard circuit breakers (15 - 50 A)
- HOM two-pole standard circuit breakers (15 - 200 A)
- HOM tandem breakers (1-pole, 15/15 A, 20/20 A, 15/20 A, 20/30 A)
- HOM quad tandems circuit breakers (1- and 2-pole, 15 A to 50 A)
- HOM ground-fault circuit interrupters (1 and 2-pole, 15 - 50 A)
- Square D arc-fault circuit-interrupters (1-pole, 15 A and 20 A)
- Square D combination arc-fault circuit interrupters (1-pole, 15 A and 20 A)
- Available accessories include handle attachments, filler plates, and neutral lugs
- HOM sub-feed lugs, two-pole, rated 125 A and 225 A
Specifications
Color : Black
Current Rating : 20 A
Dimensions : 1 in W x 2.98 in D x 3.13 in H
Interrupt Rating : 10 kA
Mounting Type : Plug
Number of Phases : 1
Number of Poles : 1
Number Of Spaces : 1
Operating Frequency : 50/60 Hz
Operating Temperature : 104 deg F
Terminal Type : Lug
Trip Sensitivity : 27 A
Trip Type : Fixed
