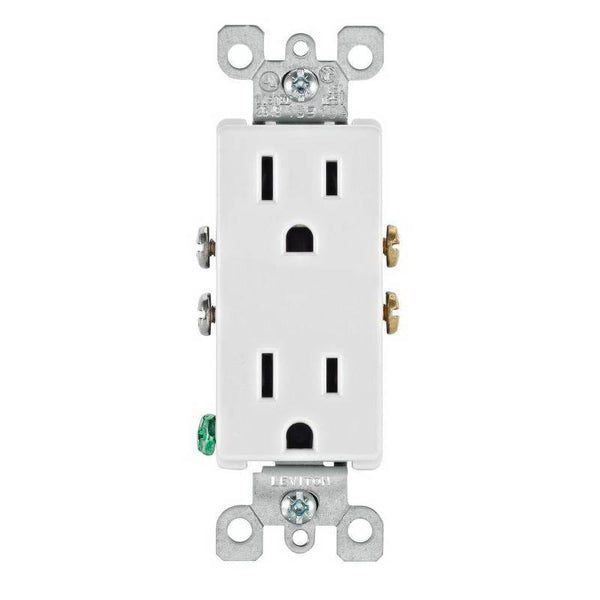

Leviton's comprehensive residential grade receptacles portfolio includes devices rated for all residential applications in a variety of standard configurations. They are produced in an array of colors in both Decora and traditional styles. All duplex receptacles are designed with thermoplastic construction and feature a shallow build for maximum wiring room. Each duplex is also equipped with break-off plaster ears and tabs to allow for easy alignment and two-circuit conversion.
Â
Features
- Double-wipe power contacts for maximum conductivity and plug retention
- Heavy-gauge rust-resistant steel mounting strap
- Thermoplastic design allows for a long service life
Specifications
Color : Â White
Current Rating : Â 15Â A
Dimensions : Â 4.06 in L x 1.52 in W x 0.98 in D
Frequency Rating : Â 60Â Hz
Material : Â Thermoplastic
Mounting Type : Â Wall
NEMA Configuration : Â 5-15R
Number of Poles : Â 2
Number Of Wires : Â 3
Operating Temperature : Â -40 to 60Â deg C
Voltage Rating : Â 125Â V
Wire Size : Â 14 to 12Â AWG
Wiring Type : Â Push-In Side
