Fill-Rite FR1204G/FR1204 Fuel Transfer Pump, Motor: 1/4 hp, 12 VDC, 20 A, 30 min Duty Cycle, 3/4 in Outlet, 15 gpm

Fill-Rite FR1204G/FR1204 Fuel Transfer Pump, Motor: 1/4 hp, 12 VDC, 20 A, 30 min Duty Cycle, 3/4 in Outlet, 15 gpm

$406.79
Unavailable
SKU: OG2913705
Barcode: 089404223390

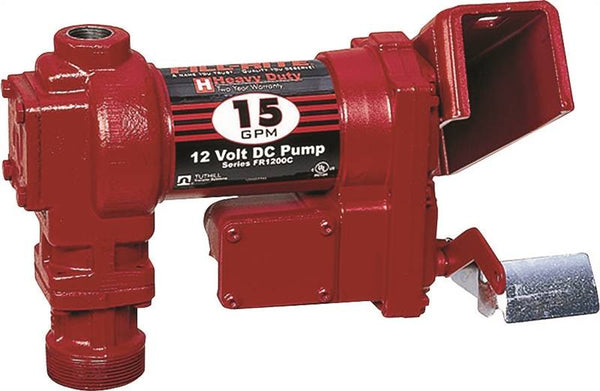

12 VDC, 15 gpm heavy-duty, cast-iron, rotary vane fuel transfer pump. Designed for gasoline, diesel, biodiesel up to B20, E15, kerosene and mineral spirits. Includes pump, 18 ft 12 ga 2-wire battery cable, 5 ft ground wire and elbow. UL/cUL, ATEX motor. Two year warranty. Made in USA. Features Cast bronze rotor with bronze rotary vanes Replaces FR1204 Built-in strainer 2...
Automotive Tuthill
Pinterest
12 VDC, 15 gpm heavy-duty, cast-iron, rotary vane fuel transfer pump. Designed for gasoline, diesel, biodiesel up to B20, E15, kerosene and mineral spirits. Includes pump, 18 ft 12 ga 2-wire battery cable, 5 ft ground wire and elbow. UL/cUL, ATEX motor. Two year warranty. Made in USA.



Features

  • Cast bronze rotor with bronze rotary vanes
  • Replaces FR1204
  • Built-in strainer
  • 2 in threaded base for tank mounting

Specifications

Designated Fluid :  Biodiesel Diesel E15 Gasoline Kerosene Mineral Spirits

Flow Rate :  15 gpm

Includes :  18 ft 12 ga 2-Wire Battery Cable 5 ft Ground Wire and Elbow Pump

Inlet Connection Size :  1 in

Inlet Type :  NPT

Material :  Cast Iron

Motor Specifications :  1/4 hp 12 VDC 20 A 30 min Duty Cycle

Outlet Connection Size :  3/4 in

Outlet Type :  NPT

Suitable for :  U564776 Kit
