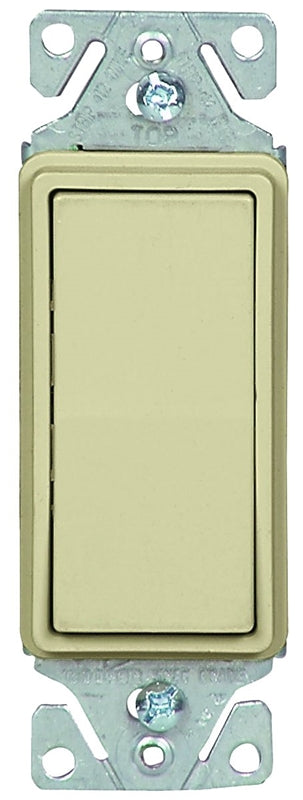

SWITCH AC QUIET DECR 1P 15A IV

SWITCH AC QUIET DECR 1P 15A IV

$6.79
Unavailable
SKU: OG6586150
Barcode: 032664627774
Ultrasonic welding and integrated construction of the strap and body. Backwire clamps on the side terminals for installation of #12 and #14 wire. Thermoplastic rocker, top and backbody are virtually unbreakable. Screws accept slotted, Phillips and Robertson head tools for installation in both the U.S. and Canada. Longer, wider strap provides 40 percent more contact area to wall board. Virtually...

Compare at $7.40

Cooper Wiring
Pinterest
Ultrasonic welding and integrated construction of the strap and body. Backwire clamps on the side terminals for installation of #12 and #14 wire. Thermoplastic rocker, top and backbody are virtually unbreakable. Screws accept slotted, Phillips and Robertson head tools for installation in both the U.S. and Canada. Longer, wider strap provides 40 percent more contact area to wall board. Virtually eliminates floating installations. Built-in wire stripper for #12 and #14 wire. Stippled ground screw standard. 15 amp, 120/277 volt AC rating for fluorescent lighting fixtures typical in commercial applications. Push in terminals accept #14 solid wire only. Temperature rating of -20 to 60 degrees C. Meets flammability requirements per UL 94, 6504, V2 rated, VO rated. UL and cUL Listed, Meets all UL20 requirements.



Specifications

Action :  Quiet

Color :  Ivory

Contact Configuration :  Single-Pole

Current Rating :  15 A

Dimensions :  419 in L x 144 in W x 097 in D

Housing Material :  Thermoplastic

Includes :  (1) Metal Strap

Mounting Type :  Strap

Number of Poles :  1

Suitable for :  Apartments and Condos Banks and Brokerage Firms Business Offices or Conference Rooms Hotels and Resorts Medical and Dental Practices New Home Construction Residential Upgrades and Renovations and Retail Locations

Temperature Rating :  -20 to 60 deg C

Terminal Type :  Lead Wire

Voltage Rating :  120/277 V
