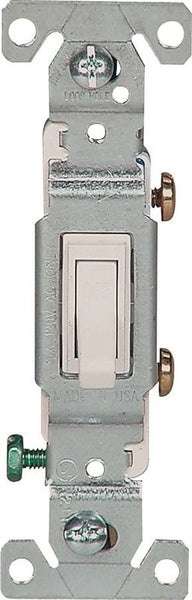

Longer, wider strap on toggle switches provides 40% more contact area to wallboard. Virtually eliminates floating installations. Industrial design cam-action mechanism insures quiet switch action. Patented built-in wire stripper for #14 and #12 wire to speed installation. Unbreakable top and bottom housing eliminates call-backs due to jobsite breakage. Patented built-in wire looper for pre-looping. Three-way switches feature additional push-in common termination for feed-through tapping. Push-in terminals accept #14 solid wire only. Side wire terminals accept up to #10 solid or stranded wire. Tri-combo screws accept slotted, Phillips and Robertson head tools for installations in both the US and Canada.
Â
Features
- Push-in terminals accept #14 AWG solid wire only, side wire terminals accept up to #10 AWG solid wire
- Long, broad mounting strap virtually eliminates floating installations
- Patented built-in wire stripper for #12 and #14 AWG wire to speed installation
- Tri-combo screws accept Slotted, Phillips and Robertson head tools for installation flexibility
- Wire looper speeds termination of both #14 and #12 AWG wire
Specifications
Actuator Type : Â Toggle
Color : Â White
Current Rating : Â 15Â A
Dielectric Strength : Â 1500Â V
Dimensions : Â 4.2 in L x 1.3 in W x 1.103 in D
Housing Material : Â Polycarbonate
Mounting Type : Â Wall
Number of Poles : Â 1
Temperature Rating : Â -20 to 60Â deg C
Voltage Rating : Â 120Â V
Wattage Rating : Â 0.5Â hp
