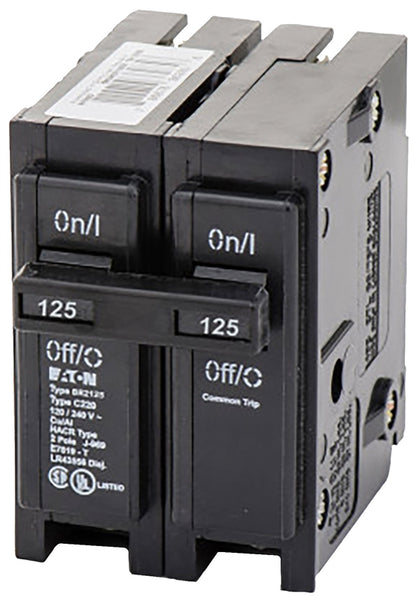

Cutler-Hammer BR2125 Circuit Breaker, Mini, Type BR, 125 A, 2 -Pole, 120/240 V, Plug Mounting

Cutler-Hammer BR2125 Circuit Breaker, Mini, Type BR, 125 A, 2 -Pole, 120/240 V, Plug Mounting

$141.24
Available
SKU: OG6857627
Barcode: 786676367059
Interchangeable, will replace: Bryant, Challenger and Westinghouse. Type BR. 120/240 V. 10 kAIC, 10,000 AIR. 2 spaces, 2 in per breaker. Features All BR circuit breakers have rejection tab feature Units feature a quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip-free handle design SpecificationsActuator Type :  Quick-Make Quick-BreakCurrent Rating :  125 ADimensions :  2.952 in L x...
Electrical Cutler-hammer
Pinterest
Interchangeable, will replace: Bryant, Challenger and Westinghouse. Type BR. 120/240 V. 10 kAIC, 10,000 AIR. 2 spaces, 2 in per breaker.



Features

  • All BR circuit breakers have rejection tab feature
  • Units feature a quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip-free handle design

Specifications

Actuator Type :  Quick-Make Quick-Break

Current Rating :  125 A

Dimensions :  2.952 in L x 1.97 in W x 2.55 in H

Interrupt Rating :  42 kA

Mounting Type :  Plug

Number of Phases :  1

Number of Poles :  2

Operating Frequency :  50/60 Hz

Operating Temperature :  60 to 75 deg C

Suitable for :  Overload and Short Circuit Protection of Electrical System

Type :  Mini Type BR

Voltage Rating :  120/240 V

Wire Size :  4 to 2/0 AWG
