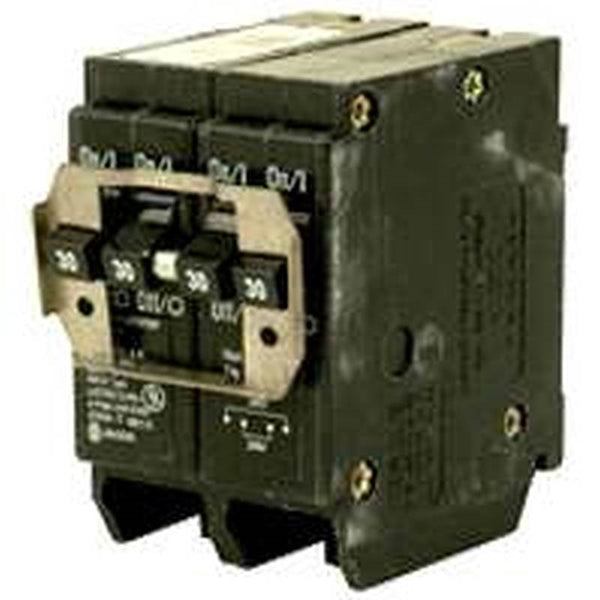

Cutler-Hammer BQ230250 Circuit Breaker with Rejection Tab, Quad, Type BQ, 30/50 A, 4 -Pole, 120/240 V

Cutler-Hammer BQ230250 Circuit Breaker with Rejection Tab, Quad, Type BQ, 30/50 A, 4 -Pole, 120/240 V

$44.60
Available
SKU: OG2327526
Barcode: 786676371100
CTL Quadplex breaker with rejection tab, 2-pole outer independent trip and 2-pole center independent trip. Requires two 1 in spaces, Wire size range #14-4, 120/240 VAC.9 lb weight, 3 in x 2 in x 3 in. UL listed, Meets UL 489. Listing for HACR applications. Meets Federal Spec classification W-C375. 120/240 V, 10,000 AIC interrupting capacity,. SpecificationsActuator Type :  Magnetic ThermalCurrent...

Compare at $47.65

Electrical Cutler-hammer
Pinterest
CTL Quadplex breaker with rejection tab, 2-pole outer independent trip and 2-pole center independent trip. Requires two 1 in spaces, Wire size range #14-4, 120/240 VAC.9 lb weight, 3 in x 2 in x 3 in. UL listed, Meets UL 489. Listing for HACR applications. Meets Federal Spec classification W-C375. 120/240 V, 10,000 AIC interrupting capacity,.



Specifications

Actuator Type :  Magnetic Thermal

Current Rating :  30/50 A

Dimensions :  3.1 in L x 1.97 in W x 2.88 in H

Interrupt Rating :  10 kA

Mounting Type :  Plug

Number of Phases :  1

Number of Poles :  4

Number Of Spaces :  2

Operating Frequency :  50/60 Hz

Operating Temperature :  60 to 75 deg C

Suitable for :  BR Series Load Centers

Terminal Type :  Feed-Thru

Type :  Quad Type BQ
