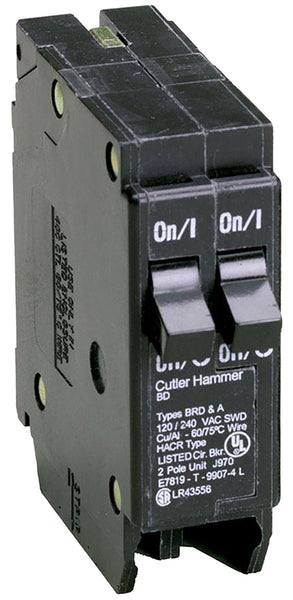

Cutler-Hammer BD1515 Circuit Breaker with Rejection Tab, Duplex, 15 A, 1 -Pole, 120 V, Instantaneous Trip

Cutler-Hammer BD1515 Circuit Breaker with Rejection Tab, Duplex, 15 A, 1 -Pole, 120 V, Instantaneous Trip

$22.10
Available
SKU: OG6858740
Barcode: 786676369053
Switching duty rating, duplex type breaker requires 1 in per breaker. Thermal magnetic 40 deg C breakers have rejection tab feature, allows only 42 circuits in the panel in compliance with NEC article 384-15. Interchangeable will replace Bryant, Challenger and Westinghouse. Type BR 120/240 V. 10,000 AIR. 1 in per breaker. SpecificationsActuator Type :  Magnetic ThermalCurrent Rating :  15 ADimensions :  3.1...
Electrical Cutler-hammer
Pinterest
Switching duty rating, duplex type breaker requires 1 in per breaker. Thermal magnetic 40 deg C breakers have rejection tab feature, allows only 42 circuits in the panel in compliance with NEC article 384-15. Interchangeable will replace Bryant, Challenger and Westinghouse. Type BR 120/240 V. 10,000 AIR. 1 in per breaker.



Specifications

Actuator Type :  Magnetic Thermal

Current Rating :  15 A

Dimensions :  3.1 in L x 0.98 in W x 2.89 in H

Interrupt Rating :  10 kA

Mounting Type :  Plug

Number of Phases :  1

Number of Poles :  1

Number Of Spaces :  1

Operating Frequency :  50/60 Hz

Operating Temperature :  40 deg C

Suitable for :  Overload and Short Circuit Protection of Home Electrical System

Terminal Type :  Feed-Thru

Trip Type :  Instantaneous
