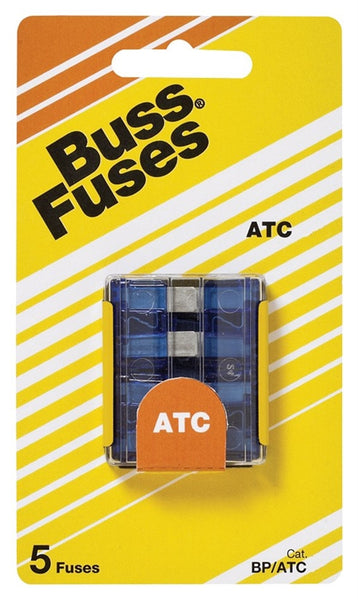

ATC blade fuses use the industry standard color coding to indicate amp rating. Bussmann Series ATC fuses are UL recognized and feature an enclosed element for electrical isolation, corrosion resistance and longer service life.
Features
- Industry standard color coding for quick identification of amp rating
- Tin-plated zinc terminals for corrosion resistance and enhanced conductivity
- Lead-and halogen-free
- Test points on specific part/package numbers may speed up circuit troubleshooting
Specifications
Body Material : Plastic
Color : Tan
Contact Material : Tin Zinc
Current Rating : 5 A
Element Type : Single
Fuse Type : Blade
Interrupt Rating : 1 kA
Length : 3/4 in
Operating Temperature : -40 to 100 deg C
Rejection/Non-Rejection : Non-Rejection
Voltage Rating : 32 VDC
