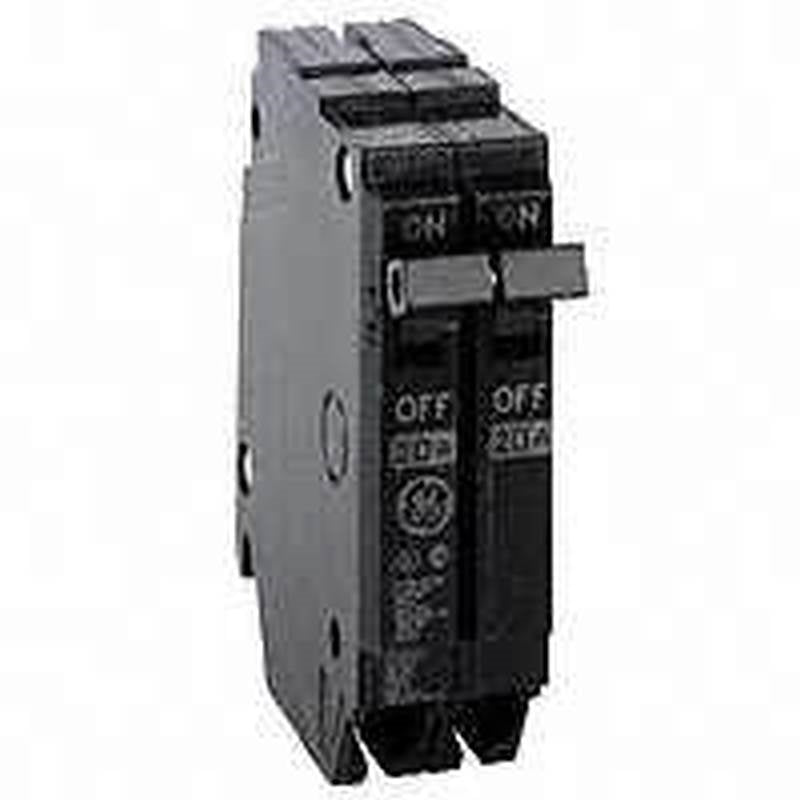

GE Industrial Solutions THQP220 Feeder Circuit Breaker, Type THQP, 20 A, 2 -Pole, 120/240 V, Plug Mounting
GE Industrial Solutions THQP220 Feeder Circuit Breaker, Type THQP, 20 A, 2 -Pole, 120/240 V, Plug Mounting
GE Industrial Solutions THQP220 Feeder Circuit Breaker, Type THQP, 20 A, 2 -Pole, 120/240 V, Plug Mounting

GE Industrial Solutions THQP220 Feeder Circuit Breaker, Type THQP, 20 A, 2 -Pole, 120/240 V, Plug Mounting

$22.72
Available
SKU: OG6122477
Barcode: 783164085723
Copper-to-copper connections, calibrated for optimum trip performance, heat-resistant thermoset cases and covers, cemented calibration screw. Nearly identical to Type THQL with the same design and performance, yet only taking up 1/2 the space. 1/2 in per pole. UL listed, HACR rated. 15 to 25 A 14 to 8 Cu or 12 to 8 Al AWG wire, 30 to 50 A...

Compare at $23.17

Electrical Ge Electrical
Pinterest

← Previous Product Next Product →

Copper-to-copper connections, calibrated for optimum trip performance, heat-resistant thermoset cases and covers, cemented calibration screw. Nearly identical to Type THQL with the same design and performance, yet only taking up 1/2 the space. 1/2 in per pole. UL listed, HACR rated. 15 to 25 A 14 to 8 Cu or 12 to 8 Al AWG wire, 30 to 50 A 8 to 4 Cu or 8 to 2 Al AWG wire. 3-9/32 in H x 1/2 in W x 2-3/8 in D. 120/240 V, 10,000 AIR.
  • Tin-plated copper stabs create a reliable, permanent and corrosion-resistant connections
  • Tin-plated copper stabs create a reliable, permanent and corrosion-resistant connections
  • Calibration screw is cemented to prevent shifting
  • Case is made of heat-resistant thermoset for stability and structural integrity
  • Trips to the center position
  • Meets NEMA standards
