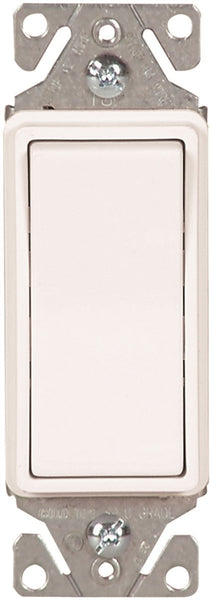

Eaton Wiring Devices 7500 7511W-BOX Rocker Switch, 15 A, 120/277 V, SPST, Lead Wire Terminal, White
Eaton Wiring Devices 7500 7511W-BOX Rocker Switch, 15 A, 120/277 V, SPST, Lead Wire Terminal, White
Eaton Wiring Devices 7500 7511W-BOX Rocker Switch, 15 A, 120/277 V, SPST, Lead Wire Terminal, White

Eaton Wiring Devices 7500 7511W-BOX Rocker Switch, 15 A, 120/277 V, SPST, Lead Wire Terminal, White

$13.58
Available
SKU: OG6088678
Barcode: 032664628009
Ultrasonic welding and integrated construction of the strap and body. Backwire clamps on the side terminals for installation of #12 and #14 wire. Thermoplastic rocker, top and back body are virtually unbreakable. Screws accept slotted, Phillips and Robertson head tools for installation in both the USA and Canada. Longer, wider strap provides 40% more contact area to wall board. Virtually...

Compare at $13.70

Electrical Eaton Wiring Devices
Pinterest

← Previous Product Next Product →

Ultrasonic welding and integrated construction of the strap and body. Backwire clamps on the side terminals for installation of #12 and #14 wire. Thermoplastic rocker, top and back body are virtually unbreakable. Screws accept slotted, Phillips and Robertson head tools for installation in both the USA and Canada. Longer, wider strap provides 40% more contact area to wall board. Virtually eliminates floating installations. Built-in wire stripper for #12 and #14 wire. Stippled ground screw standard. 15 A, 120/277 VAC rating for fluorescent lighting fixtures typical in commercial applications. Push in terminals accept #14 solid wire only. Temperature rating of -20 to 60 deg C. Meets flammability requirements per UL 94, 6504, V2 rated, VO rated. UL and cUL listed, meets all UL20 requirements.
  • Thermoplastic rocker, top and back body are virtually unbreakable to deliver years of durable performance
  • Thermoplastic rocker, top and back body are virtually unbreakable to deliver years of durable performance
  • Ultrasonic welding and integrated construction of the strap and body provide great ground integrity even under heavy use
  • Backwire clamps on side terminals provide for easy installation of #12 and #14 AWG wire
  • Push-in terminals accept #14 AWG solid wire for quick installation
  • Stippled ground screw terminal standard
  • Long, broad mounting strap virtually eliminates floating installations
  • Patented built-in wire stripper for #14 and #12 AWG wire to speed installation
  • Tri-combo screws accept Slotted, Phillips and Robertson-head tools for installation flexibility
  • Redesigned paddle for easier actuation and quiet operation
