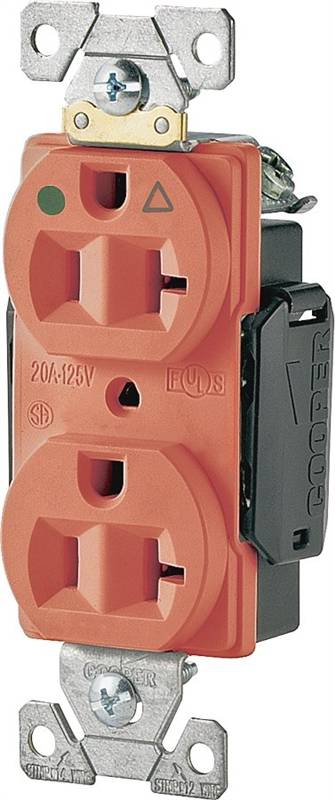

Eaton Cooper Wiring IG8300 IG8300RN Duplex Receptacle, 2 -Pole, 20 A, 125 V, Back, Side Wiring, NEMA: 5-20R

Eaton Cooper Wiring IG8300 IG8300RN Duplex Receptacle, 2 -Pole, 20 A, 125 V, Back, Side Wiring, NEMA: 5-20R

$16.51
Available
SKU: OG6557912
Barcode: 032664704857
Hospital specification-grade straight blade receptacles - isolated ground premium back wire & side wire. Arrow Hart's feature rich line of hospital-grade receptacles have been designed to meet and exceed the demanding requirements of UL 498 and Federal Specification WC-596 to provide a consistent means of connectivity where downtime can be critical. Exclusive screw terminal guards provide fast, easy insulation from...

Compare at $17.85

Electrical Eaton Wiring Devices
Pinterest

← Previous Product Next Product →

Hospital specification-grade straight blade receptacles - isolated ground premium back wire & side wire. Arrow Hart's feature rich line of hospital-grade receptacles have been designed to meet and exceed the demanding requirements of UL 498 and Federal Specification WC-596 to provide a consistent means of connectivity where downtime can be critical.
  • Exclusive screw terminal guards provide fast, easy insulation from conductive surfaces (duplex only)
  • Exclusive screw terminal guards provide fast, easy insulation from conductive surfaces (duplex only)
  • Exclusive 5-leaf, brass line contacts provide consistent performance and great plug retention (duplex only)
  • Rigid, glass reinforced nylon base lends ultimate strength and great high heat resistance in contact carrier (duplex only)
  • High-impact- and chemical-resistant nylon face
  • Tapered lead in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections
  • All terminal and mounting screws triple combination (slot/Phillips/Robertson) head for maximum installer flexibility
  • Long, broad mounting strap helps reach large panel cutouts for code compliance
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where jumper is used
  • Screw-Catchâ„¢ feature on duplex devices speeds mounting of wallplates
