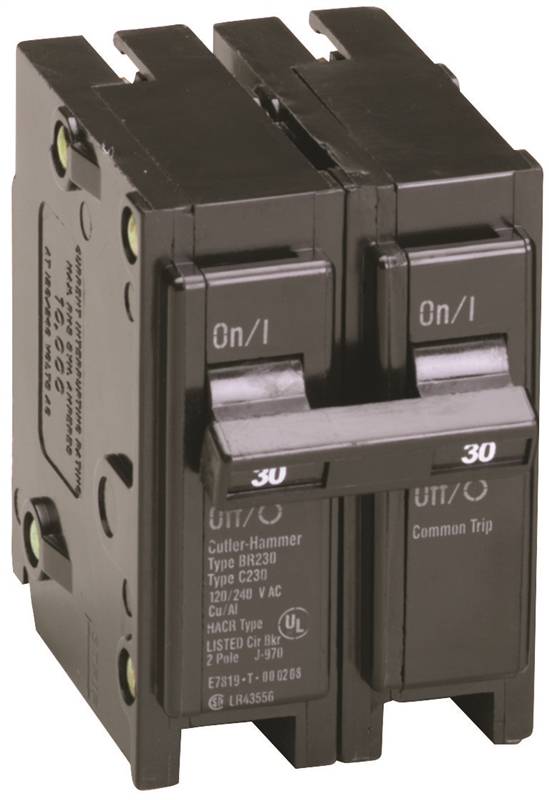

Cutler-Hammer BR230 Circuit Breaker, Mini, Type BR, 30 A, 2 -Pole, 120/240 V, Plug Mounting

Cutler-Hammer BR230 Circuit Breaker, Mini, Type BR, 30 A, 2 -Pole, 120/240 V, Plug Mounting

$19.79
Unavailable
SKU: OG6855142
Barcode: 786676362955
Interchangeable, will replace: Bryant, Challenger and Westinghouse. Type BR. 120/240 V. 10 kAIC, 10,000 AIR. 2 spaces, 2 in per breaker. Features All BR circuit breakers have rejection tab feature Units feature a quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip-free handle design SpecificationsActuator Type :  Quick-Make Quick-BreakCurrent Rating :  30 ADimensions :  2.92 in L x...
Electrical Cutler-hammer
Pinterest

← Previous Product Next Product →

Interchangeable, will replace: Bryant, Challenger and Westinghouse. Type BR. 120/240 V. 10 kAIC, 10,000 AIR. 2 spaces, 2 in per breaker.



Features

  • All BR circuit breakers have rejection tab feature
  • Units feature a quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip-free handle design

Specifications

Actuator Type :  Quick-Make Quick-Break

Current Rating :  30 A

Dimensions :  2.92 in L x 1.96 in W x 1.92 in H

Interrupt Rating :  42 kA

Mounting Type :  Plug

Number of Phases :  1

Number of Poles :  2

Operating Frequency :  50/60 Hz

Operating Temperature :  60 to 75 deg C

Suitable for :  Overload and Short Circuit Protection of Home Wiring

Type :  Mini Type BR

Voltage Rating :  120/240 V

Wire Size :  14 to 4 AWG
