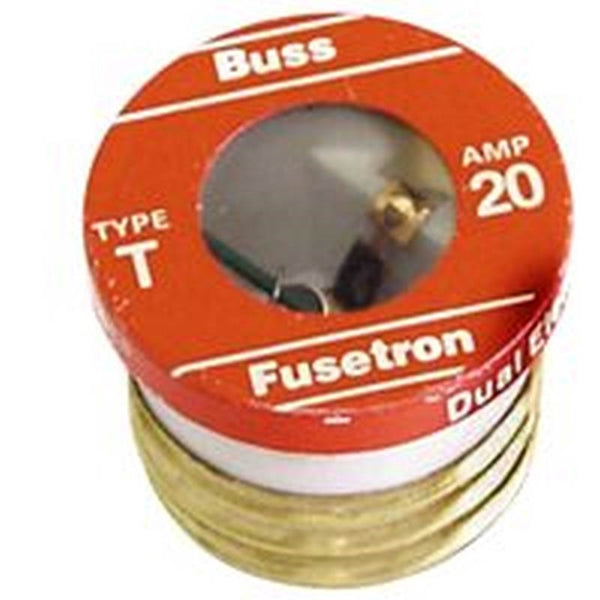

Bussmann BP/T-20 Plug Fuse, 20 A, 125 V, 10 kA Interrupt, Plastic Body, Low Voltage, Time Delay Fuse

Bussmann BP/T-20 Plug Fuse, 20 A, 125 V, 10 kA Interrupt, Plastic Body, Low Voltage, Time Delay Fuse

$16.49
Unavailable
SKU: OG4581823
Barcode: 051712102223
Used for circuits where motors frequently turn on and off. A simple link element for short circuits and dangerous overloads plus a Series connected element which lets the harmless overload starting currents of motors pass without opening. Features Heavy-duty time delay plug fuse Use to protect critical motor circuits or motors that cycle On/Off frequently An industrial or commercial-grade product with...
Electrical Bussmann Fuses
Pinterest

← Previous Product Next Product →

Used for circuits where motors frequently turn on and off. A simple link element for short circuits and dangerous overloads plus a Series connected element which lets the harmless overload starting currents of motors pass without opening.



Features

  • Heavy-duty time delay plug fuse
  • Use to protect critical motor circuits or motors that cycle On/Off frequently
  • An industrial or commercial-grade product with dual-element construction
  • More time delay than the medium-duty type TL fuses in order to better protect industrial motors and critical residential circuits
  • These fuses thread into fuse receptacles and box cover units
  • Industrial strength, featuring an exclusive dual-element construction
  • This spring-loaded design provides excellent short circuit and overload protection

Specifications

Body Material :  Plastic

Current Rating :  20 A

Element Type :  Dual

Fuse Type :  Low Voltage Time Delay

Interrupt Rating :  10 kA

Voltage Rating :  125 V
