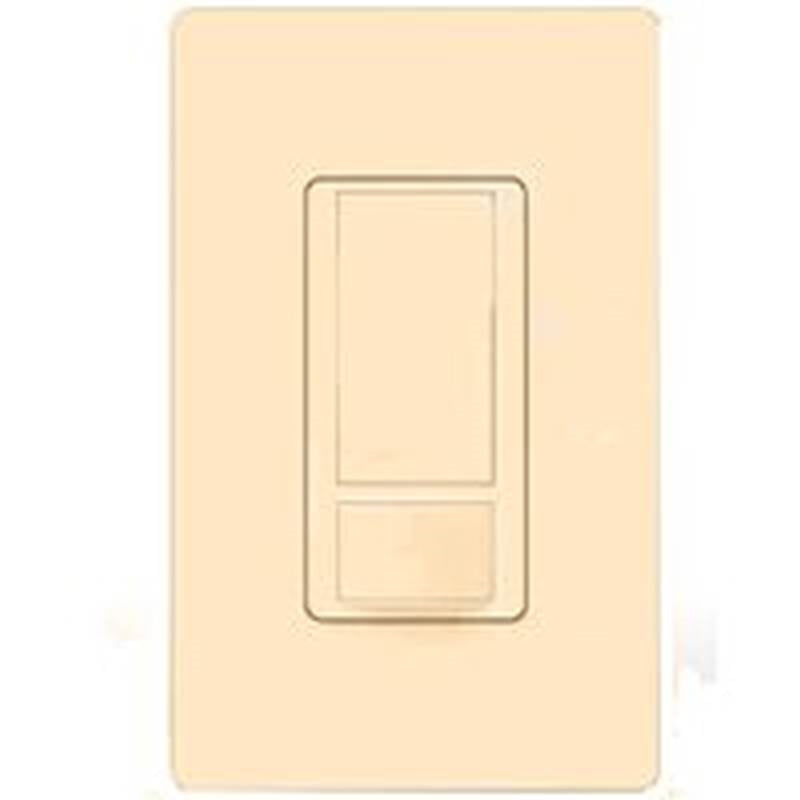

The Lutron Maestro Occupancy sensing switch combines a Maestro switch with a passive infrared occupancy or vacancy sensor. The sensor detects the heat from occupants moving within an area to determine whether the space is occupied. Based on the feedback from the sensor, the occupancy sensing switch will adjust the load accordingly.
Â
Features
- Passive infrared sensors with exclusive Lutron XCT technology for fine motion detection
- Adjustable timeout (1, 5, 15 or 30 mins) and high/low sensitivity adjustment
- Sensor automatically turns lights on when entering a room and sensor automatically turns lights off when room is vacant
- Up to 30 ft x 30 ft major motion coverage and 20 ft x 20 ft minor motion coverage
Specifications
Color : Â Ivory
Current Rating : Â 5Â A
Dimensions : Â 4.7 in L x 1.12 in W x 2.93 in H
Frequency Rating : Â 50/60Â Hz
Lamp Type : Â CFL Halogen Incandescent LED
Material : Â Plastic
Mounting Type : Â Wallbox
Number of Poles : Â 1
Sensing Angle : Â 180Â deg
Sensing Range : Â 30Â ft
Sensor Type : Â Motion
Temperature Rating : Â 0 to 40Â deg C
Voltage Rating : Â 120Â V
